Product Specification

Model Number: NBT30 BT30 BT40 ISO20 ISO25 ISO30 HSK63

Brand Name: GUS

Application: Milling Cutter

Description:

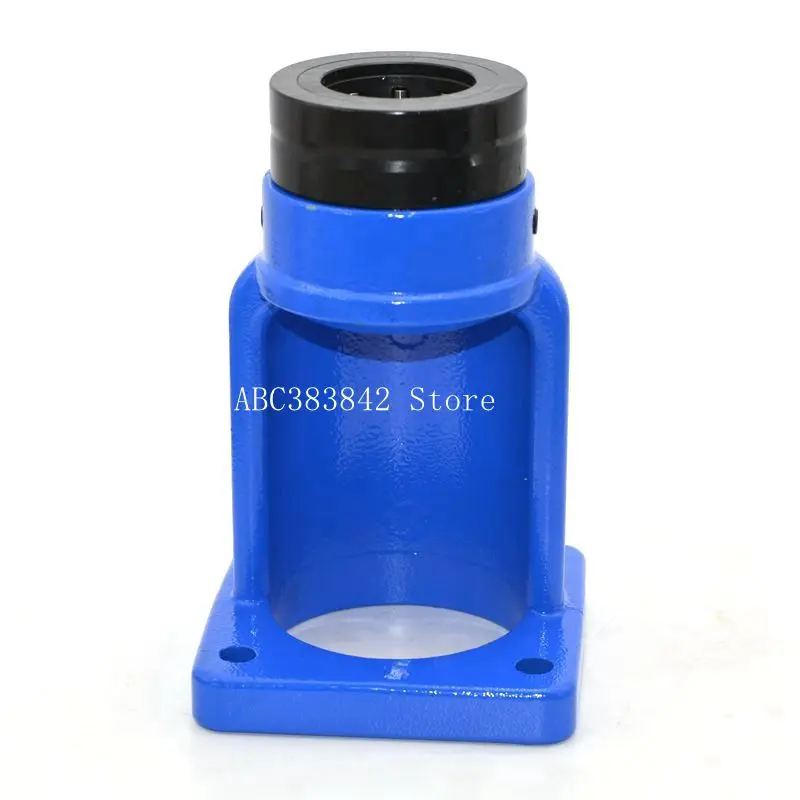

Product Name: Bearing Lock Toolholder
Unit: One set

Product Material: High Quality Cast Iron

Product model: ISO, BT, HSK series

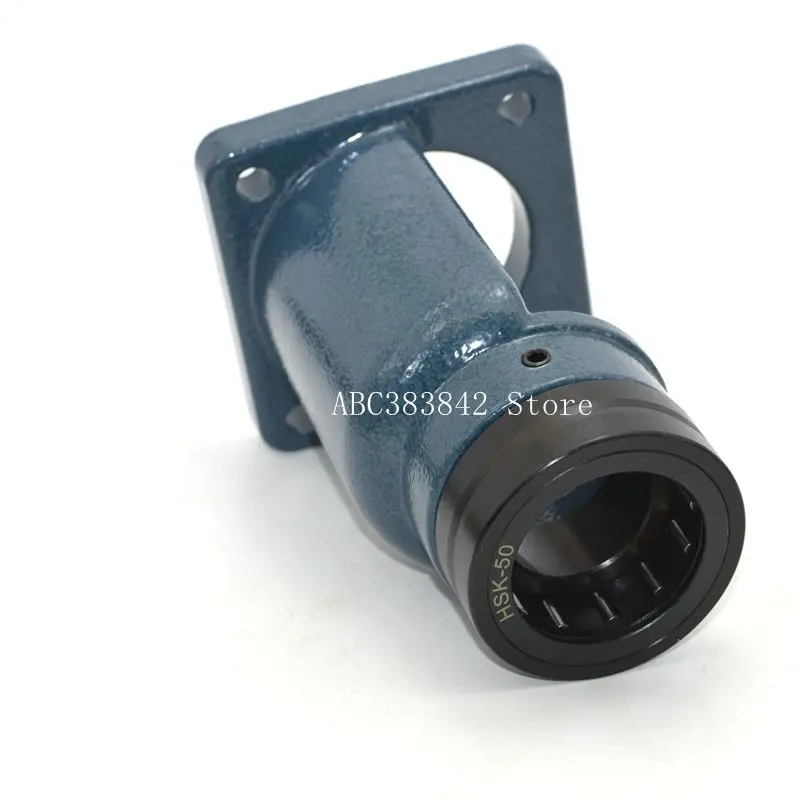

Model Universal: ISO30 and HSK50E Universal

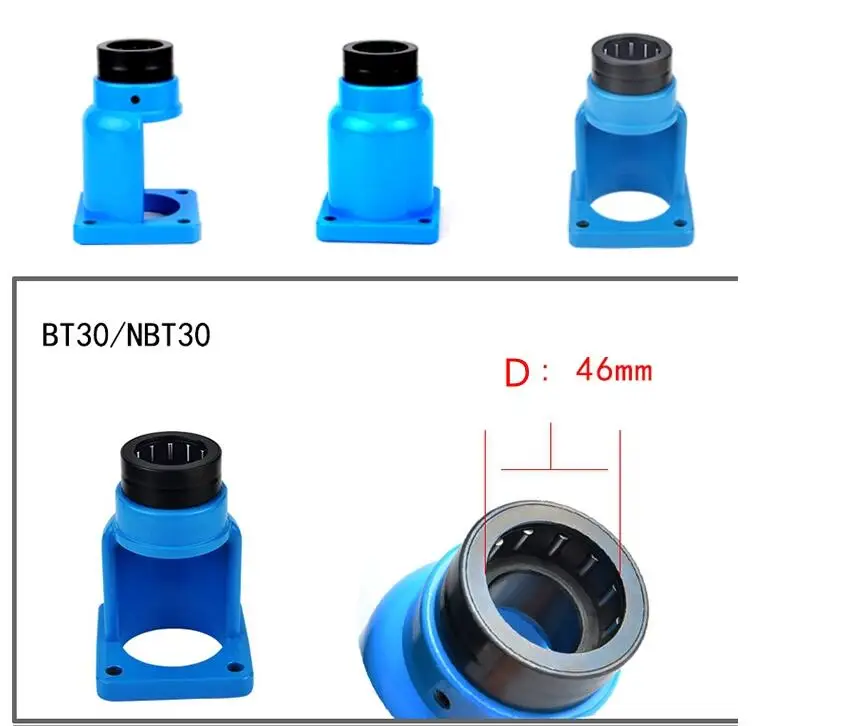

Model Universal: BT30 and NBT30 Universal

Model Universal: HSK63A, HSK63F, BT40 Universal

Packaging includes:


1pcs bearing lock tool holder


4pcs screws























Note: The color of the locking device is random.

Fix the knife base on the table with four screws before use.
